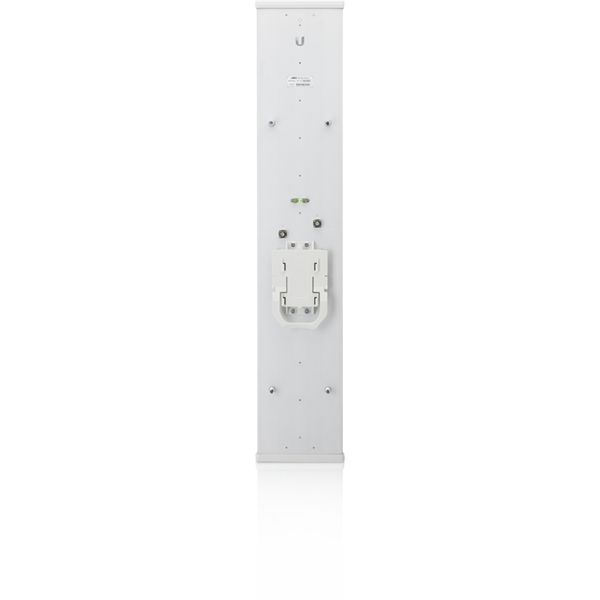

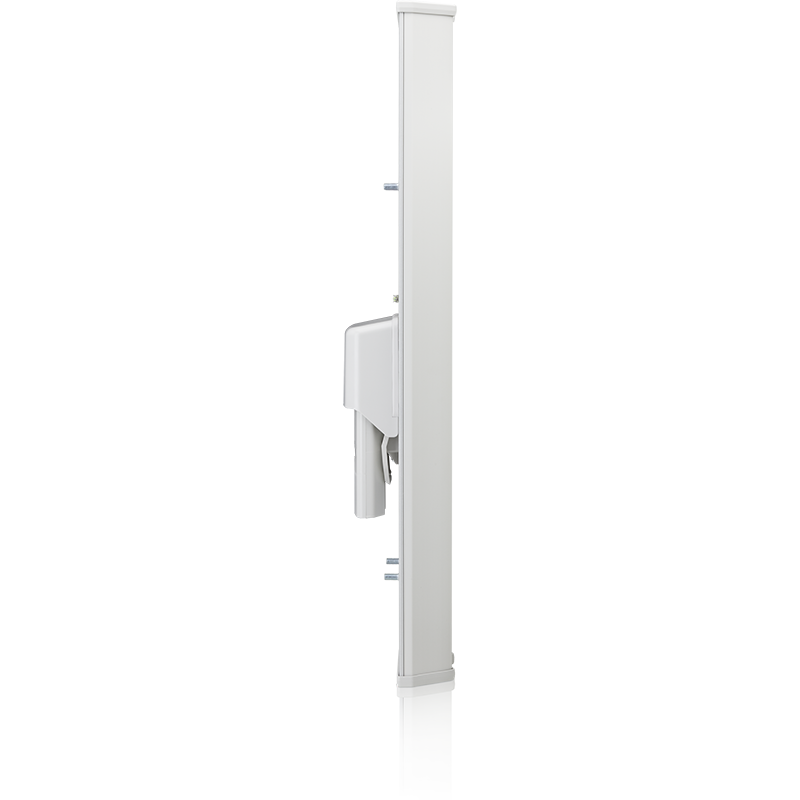

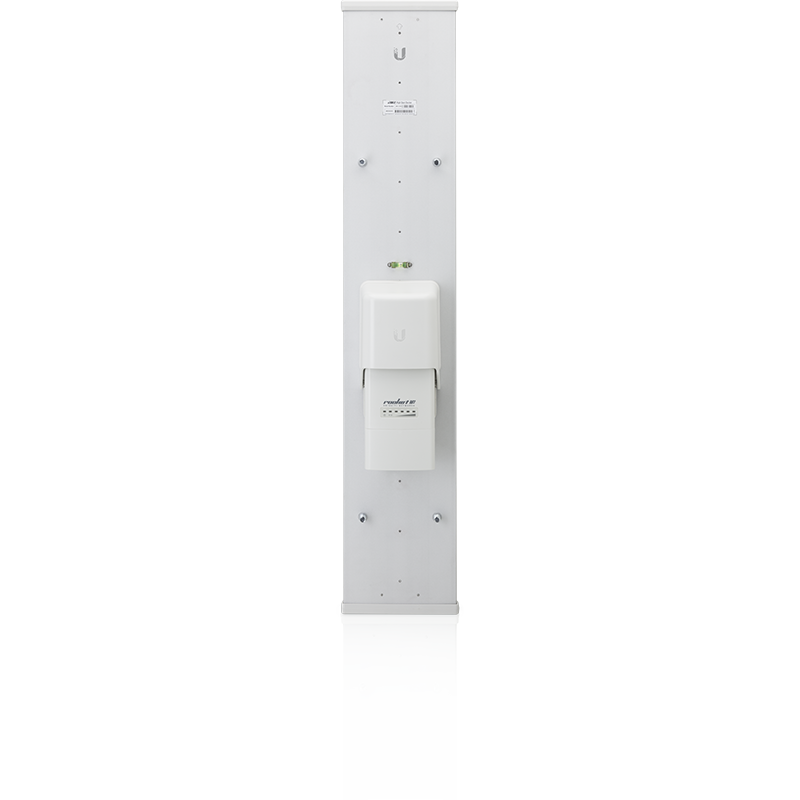

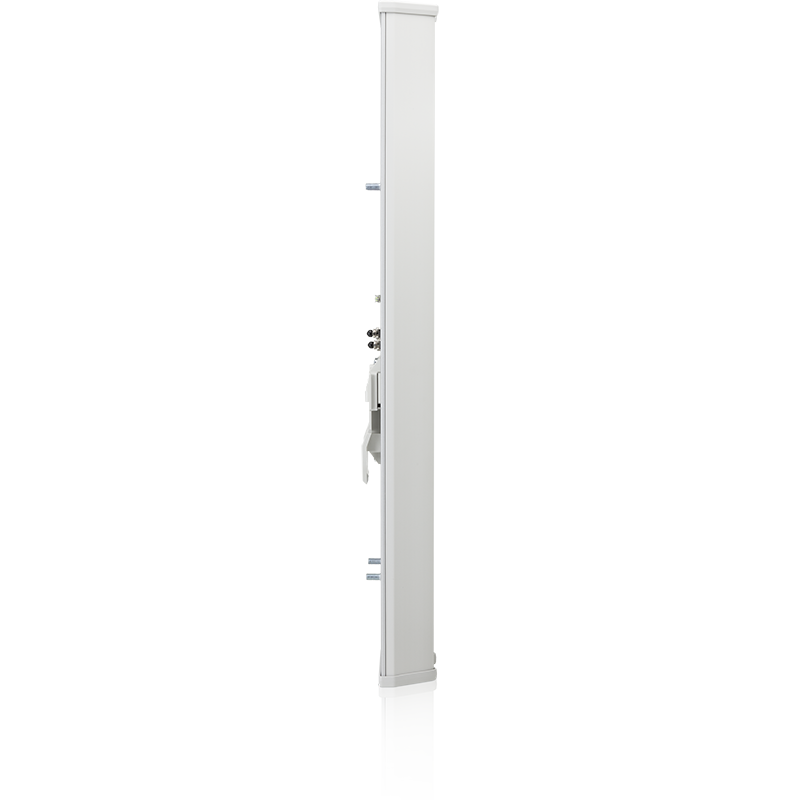

3 GHz airMAX 18 dBi, 120º BaseStation Sector Antenna
BRAND: Ubiquiti
3 GHz airMAX 18 dBi, 120º BaseStation Sector Antenna
$199.00
airMAX® 2×2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP)
Out of stock
Brand
Ubiquiti
| Dimensions (mm) | 735 x 144 x 78 |
|---|---|
| Weight | 5.9 kg |
| Frequency Range | 3.3 – 3.8 GHz |
| Gain | 17.3 – 18.2 dBi |
| HPOL Beam width | 118° (6 dB) |
| VPOL Beamwidth | 121° (6 dB) |
| Electrical Beamwidth | 6° |
| Electrical Downtilt | 3° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 21 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
